Geomagnetic
Guidance System

Wireless outdoor parking guidance with real-time space detection and weather-resistant sensors. Monitor outdoor parking occupancy in real time and guide drivers through outdoor remaining-space displays, with external indicator lights available for projects requiring enhanced on-site guidance.

Download Datasheet Contact Us for Project Configuration

Outdoor Detection Pipeline

From Space Detection to Outdoor Guidance The system detects outdoor parking space occupancy through geomagnetic sensors, uploads space status wirelessly, and updates outdoor guidance displays in real time.

Space Detection

The dual-mode geomagnetic sensor detects whether the outdoor parking space is available or occupied.

Wireless Data Transmission

Parking-space status is transmitted wirelessly from the sensor to the outdoor area controller.

Data Processing & Platform Update

The outdoor area controller collects and forwards parking-space data to the management platform for processing, monitoring, and storage.

Outdoor Guidance Update

Processed availability data is displayed through outdoor guidance screens and optional external indicator lights to help drivers locate available parking areas.

Why Outdoor Geomagnetic

Built for Outdoor Parking Environments

Wireless Deployment

Battery-powered sensors transmit data wirelessly, eliminating the need for complex trenching and wiring in outdoor environments.

IP68 Sensor Protection

Fully sealed structural design ensures sensors operate reliably in rain, snow, and harsh outdoor weather conditions.

Dual-Mode Detection

Combines geomagnetic field variations with micro-power radar technology to achieve over 99% accuracy in vehicle detection.

Buried & Surface-Mounted

Supports both flush buried installation (snowplow safe) and surface-mounted installation based on your facility's requirements.

Core Modules

Core System Modules

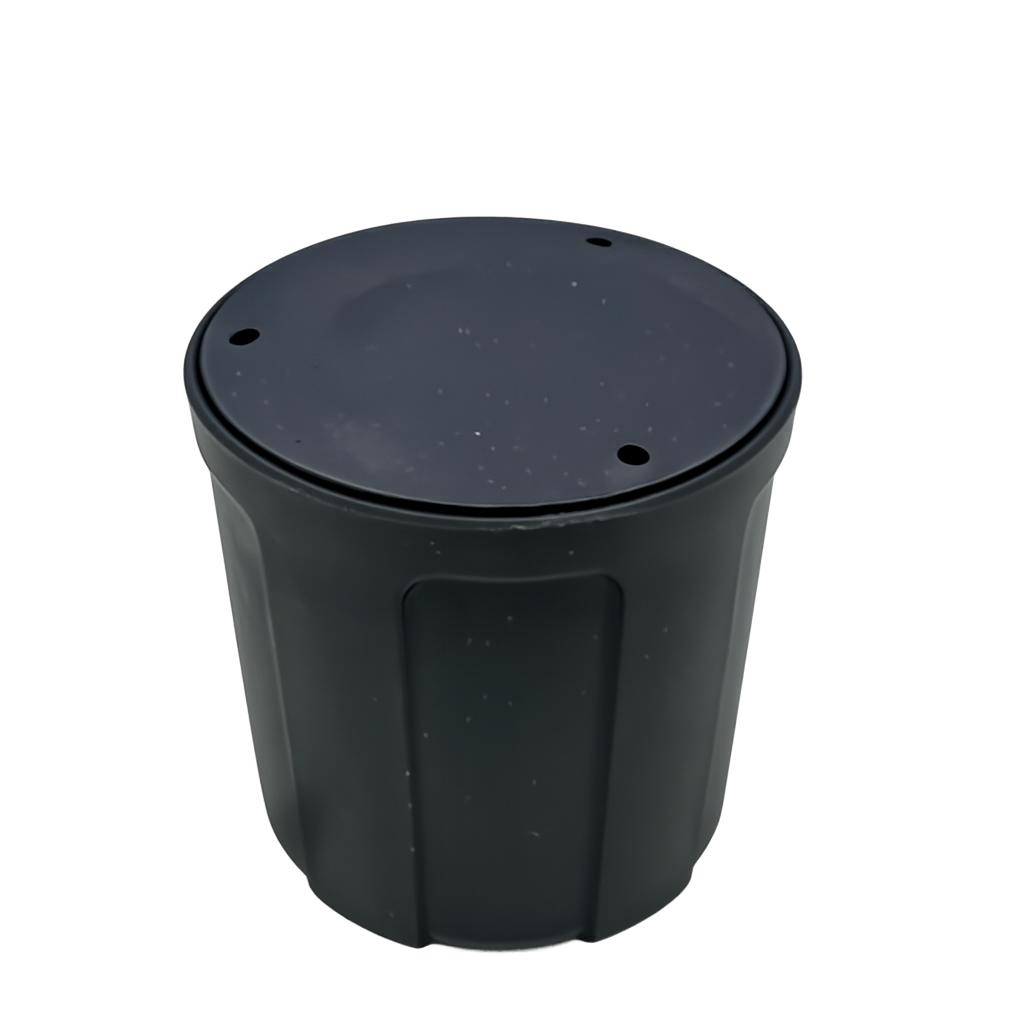

YB-NDP04

Embedded Geomagnetic Sensor

Buried dual-mode sensor for real-time outdoor parking-space detection.

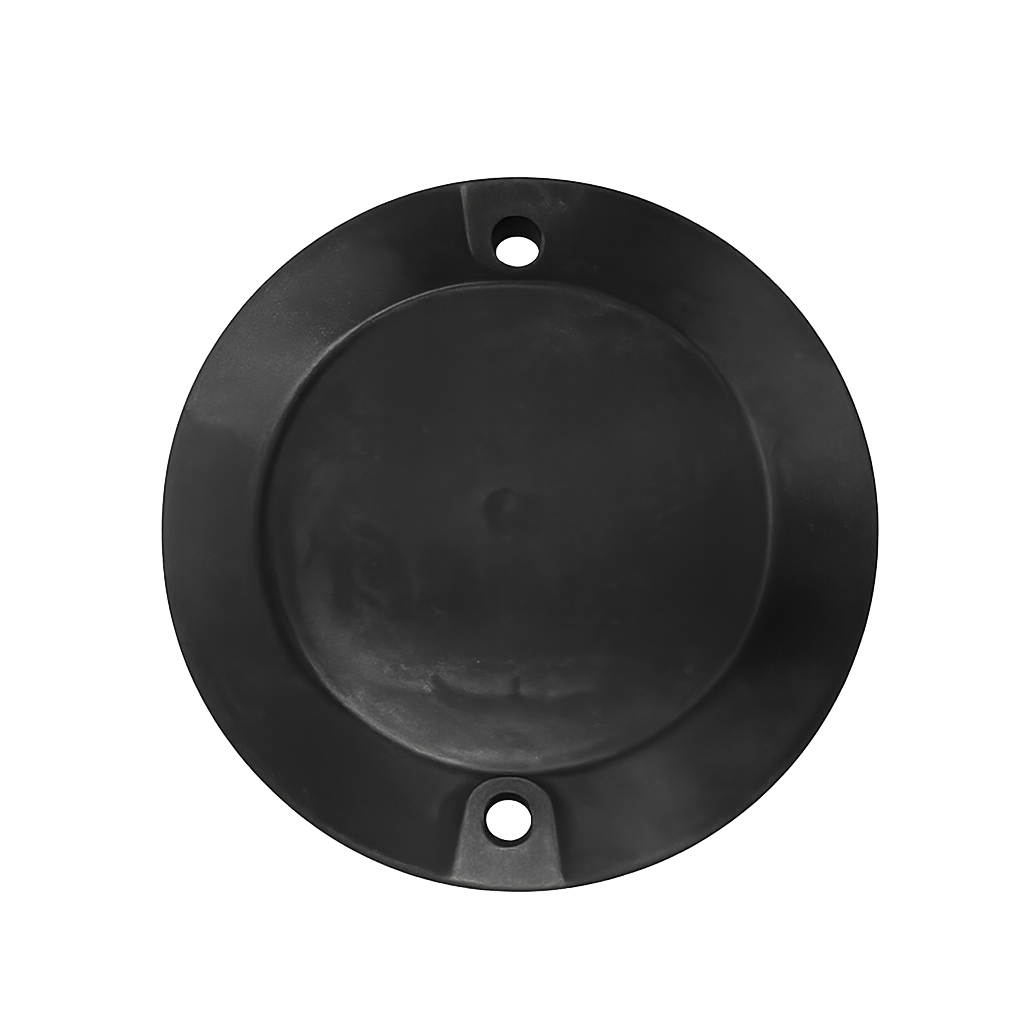

YB-P-T10S

Surface-Mounted Geomagnetic Sensor

Surface-mounted dual-mode sensor for sites requiring a lower-impact installation method.

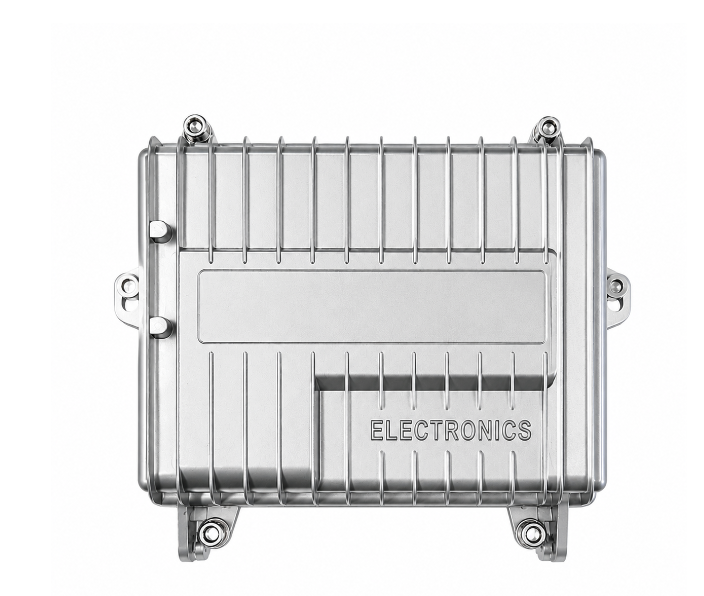

YB-P-K03ZE

Outdoor Area Controller

Collects wireless parking-space data and connects sensors, guidance displays, and the management platform.

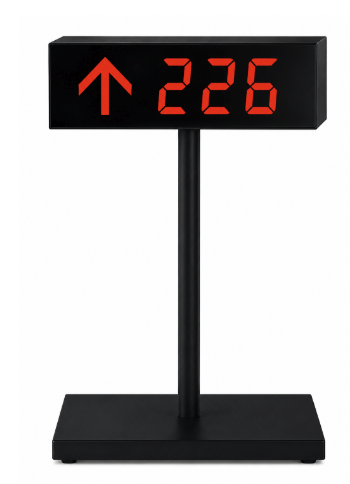

YB-P-OA31-1D

Entrance Remaining Space Display

Displays available parking-space information at entrances and key decision points. One-way, two-way, and three-way configurations are customizable.

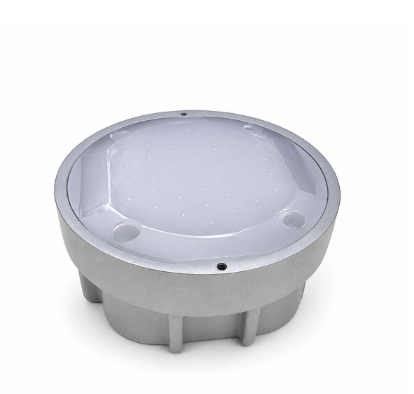

External Indicator Light

Optional Visual Guidance Accessory

Provides enhanced parking-space or lane-level status indication when required by the project.

Geomagnetic Guidance Management Platform

Provides real-time parking maps, occupancy monitoring, utilization analysis, device management, user permissions, third-party data push, and log export.

Need Wireless
Guidance for Outdoor Parking?

Tell us about your outdoor parking layout, installation conditions, and guidance requirements.

Download Datasheet
